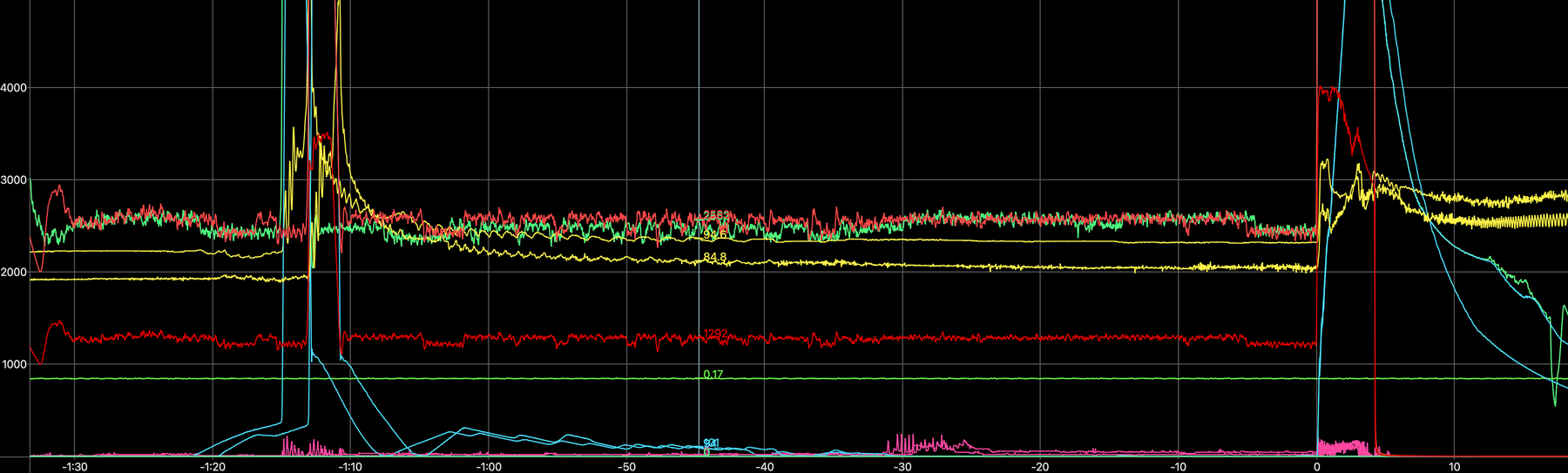

How to Read a Drag Racing Data Log Like a Pro
Reading a drag racing data log isn’t about staring at endless graphs and hoping something jumps out. The racers who actually get faster use a simple approach: break the run into sections, focus on what matters in each section, and compare runs with intention.
Here’s how to do it like a pro.
Start With the Structure of the Run
The biggest mistake racers make is trying to interpret everything at once. A typical data log can include dozens of channels and thousands of data points—more than enough to overwhelm anyone.
Instead, break the pass into four key phases:
- Launch
- Early acceleration (60 ft)
- Mid-track
- Top end
Once you organize the run this way, the data becomes far easier to understand—and far more actionable.
Step 1: The Launch Sets Everything Up
The launch is where the run is won or lost before it even begins.
Focus on:
- RPM at the hit
- Throttle input
- Timing behavior
- Tire slip indicators (if available)
Ask yourself:
- Was this consistent with previous runs?
- Did the car hook—or spin?
If the launch isn’t repeatable, nothing else in the run will be either. Consistency here is the foundation for meaningful tuning decisions.
Step 2: The 60-Foot Tells the Truth
If something feels off about your ET, the 60-foot is the first place to look.
This section reveals:
- Traction quality
- Initial power delivery
A key rule of thumb:
Small changes in 60-foot time create big changes in overall ET.
If your 60-foot slows down, your ET will follow—no matter what happens later in the run.
Step 3: Mid-Track Is Where Power Shows Up
Once the car is moving, mid-track performance reveals how well your setup is actually working.
Look at:
- Acceleration curve
- Engine load
- AFR stability
This phase answers critical questions:
- Is the tune efficient?
- Is the car pulling cleanly through the run?
If your acceleration curve flattens unexpectedly, it’s a clear sign you’re leaving power on the table.
Step 4: Top End Reveals Efficiency
At the top end, you’re no longer fighting for traction—you’re evaluating efficiency.
Focus on:
- MPH
- Timing stability
- Engine behavior under load
Here’s a subtle but important insight:
If your MPH drops but ET doesn’t, you may have improved traction early in the run while actually losing power overall.
Without data, that kind of issue is easy to miss.
How to Compare Runs the Right Way
Looking at a single pass won’t tell you much. Real insight comes from comparison.
Overlay:
- A strong run
- A weak run
Then ask:
- Where do they start to separate?
- What changed at that exact moment?
That point of separation is where your answer lives. It tells you exactly what to fix—or what worked.
Common Mistakes When Reading Data Logs
Even experienced racers fall into these traps:
Looking at peak numbers only
Peak horsepower or RPM doesn’t tell the full story. Performance is built across the entire run.
Ignoring consistency
One fast pass can be misleading. Repeatability is what wins rounds.
Not tying data to conditions
A run at 2,500 DA isn’t directly comparable to one at 500 DA without proper context. Conditions matter.
How PDS Simplifies the Process
Raw data can slow you down if it’s hard to interpret.
With PDS:
- Runs are visualized clearly
- Key moments are easy to identify
- Comparisons happen instantly
So instead of asking:
“What am I looking at?”
You start asking:
“What do I change next?”
That shift is where real performance gains happen.
The Bottom Line
Reading data logs isn’t about being an engineer—it’s about being methodical.
- Break the run into sections
- Compare changes across runs
- Make decisions based on what actually happened
Do that consistently, and you stop guessing—and start improving every pass.
