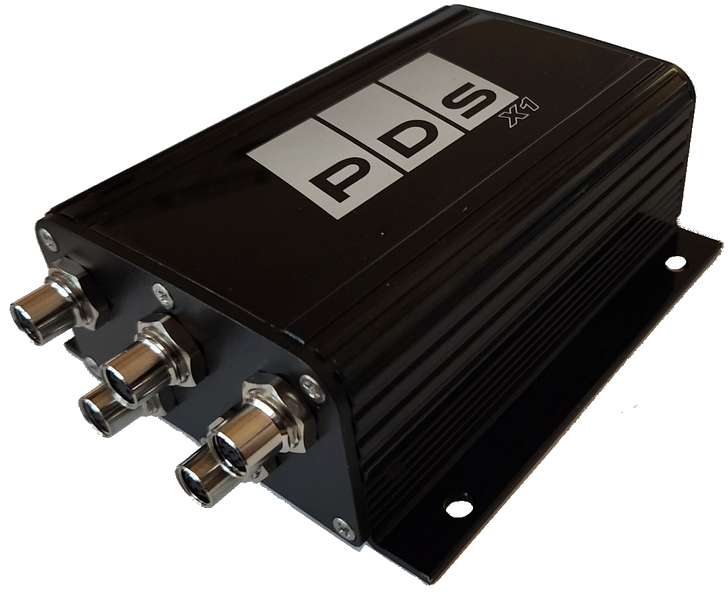

X1 DATA LOGGER

X1 DATA LOGGER

SKU DL-KT-X1-DC
$2,400.00

Notify me when back in stock

Performance Data Systems' very own X1 data recorder is NHRA approved for use in nearly all categories of drag race vehicles. It is also recommended for many pulling applications using a traditional battery or CDI ignition, as well as all single-magneto applications.

It is well suited for the following applications:

  • Brackets, Super Street, Super Gas, Super Comp
  • Stock, Super Stock, Competition Eliminator
  • Top Sportsman and Top Dragster
  • Pro Stock
  • Pro Modified
  • Drag Radial/Small Tire/Outlaw
  • Alcohol Funny Car and Alcohol Dragster
  • Nostalgia Funny Car and Top Fuel
  • Pro Stock and Nitro Motorcycle
  • Mini Rod
  • 2WD and 4WD Trucks
  • Diesel
  • Modified

In its base configuration, the X1 monitors 5 parameters (Engine RPM, Driveshaft RPM, Accel G, Lateral G, Battery Volts). These inputs connect to the logger using the X1's RPM module.

With 5 available digital inputs, you can monitor a variety of RPM channels or events, such as:

  • Engine RPM
  • Driveshaft RPM
  • Converter or Clutch RPM
  • Flow Meter or Front Wheel Speed
  • Record Button or TDC RPM (Ignition Timing)

With the optional timing upgrade you can easily monitor either individual cylinder timing or overall ignition timing.

You can also add up to 72 XBus channels to meet the needs of most users. Any monitored function can also be displayed in real time on a CAN-enabled display, or downloaded using the Caliper data analysis software.

Additionally, you can connect your CAN-based ECU or sensors to the X1 for expanded data acquisition capabilities with a simple cable. No additional hardware required.

These systems come with 5 different harness options:

  • Door Car
  • Funny Car/Altered
  • Dragster
  • Motorcycle
  • Custom 20' (user terminated)

NOTE: Systems DO NOT INCLUDE a driveshaft collar.

If ordering online, please add either a 2-magnet collar or 8-magnet collar before checking out.
