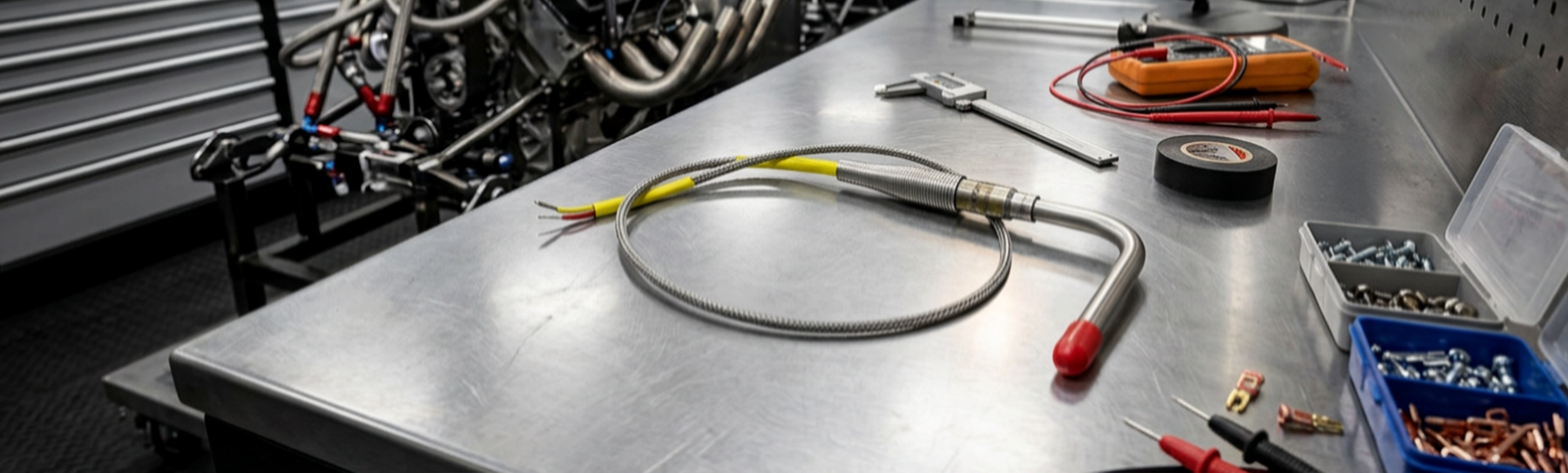

FLUID TEMP THERMOCOUPLE SENSOR

Why Fluid Temperature Monitoring Matters in Data Logging

In high-performance racing, engines and driveline systems operate under extreme heat and pressure. Every fluid in the vehicle — oil, transmission fluid, coolant, fuel, converter fluid, or hydraulic fluid — has an ideal operating temperature range. Once temperatures move outside that window, performance, consistency, and component life suffer quickly.

That’s where a fluid temp thermocouple sensor becomes one of the most valuable tools in a modern data logging system.

A fluid temperature thermocouple sensor gives racers and tuners real-time temperature data directly from critical systems so they can monitor performance, diagnose problems, and protect expensive components before failures happen.

What Is a Fluid Temp Thermocouple Sensor?

A fluid temp thermocouple sensor is a temperature measurement device designed specifically to monitor liquid temperatures inside a racing system. Unlike standard temperature senders designed for gauges, thermocouples react extremely fast and provide highly accurate temperature readings that are ideal for high-speed data acquisition.

These sensors are commonly installed in:

• Engine oil systems
• Transmission pans
• Converter circuits
• Differential housings
• Fuel systems
• Coolant passages
• Hydraulic clutch systems
• Dry sump oil tanks
• Turbo oil feeds and returns

The sensor continuously feeds temperature data into the data logger, allowing the tuner to analyze exactly what happens during a run.

Why Fluid Temperature Is Critical in Racing

Temperature directly affects fluid viscosity, lubrication efficiency, hydraulic pressure, and overall system performance.

If fluid temperature becomes too low:

• Oil may not lubricate properly
• Transmission fluid may shift inconsistently
• Fuel atomization may suffer
• Hydraulic systems may react slower

If fluid temperature becomes too high:

• Oil viscosity breaks down
• Bearings lose protection
• Transmission clutches slip
• Converter efficiency changes
• Fuel temperatures rise and reduce consistency
• Component life decreases dramatically

Without data logging, these problems often go unnoticed until parts fail.

A fluid temp thermocouple sensor allows teams to see these issues developing long before they become catastrophic.

Why Thermocouples Are Better for Data Logging

Traditional temperature sensors and dashboard gauges are often too slow and inaccurate for serious performance analysis.

Thermocouple sensors provide several major advantages:

Fast Response Time

Thermocouples react rapidly to temperature changes, making them ideal for racing environments where temperatures can spike instantly during a pass.

High Accuracy

Precise readings help tuners identify trends that small temperature variations can reveal.

Extreme Temperature Capability

Thermocouples can withstand very high fluid temperatures common in:

• Top Fuel
• Pro Mod
• No Prep
• Turbo applications
• High-stall converter combinations

Better Data Resolution

A quality data logger paired with thermocouples captures temperature changes throughout the run instead of just showing a general average.

Common Uses for Fluid Temp Thermocouple Sensors

Engine Oil Temperature Monitoring

Oil temperature is one of the best indicators of engine health and efficiency.

Monitoring oil temp helps:

• Verify proper warm-up procedures
• Detect bearing distress
• Monitor oil breakdown
• Identify cooling deficiencies
• Prevent lubrication failure
• Indicate increased wear or “spun” bearing

Consistent oil temperature also improves repeatability round after round.

Transmission Fluid Temperature

Transmission temperature directly impacts:

• Shift consistency
• Clutch performance
• Converter efficiency
• Fluid longevity

Excessive transmission temperature is often the first warning sign of:

• Converter slip
• Clutch wear
• Incorrect gearing
• Overloaded driveline combinations

Logging transmission temperature allows racers to spot these issues before damage occurs.

Converter Charge and Converter-Out Temperature

Converter heat tells a detailed story about power transfer efficiency.

High converter temperatures may indicate:

• Excessive slippage
• Poor stall matching
• Traction issues
• Driveline inefficiency

This data becomes extremely valuable when tuning launch RPM, tire setup, or lock-up strategies.

Fuel Temperature Monitoring

Fuel temperature affects:

• Fuel density
• Air/fuel ratio consistency
• Injector performance
• Overall tune-up stability

As fuel temperatures rise:

• Fuel becomes less dense
• Engine consistency changes
• Tuning windows narrow

Logging fuel temperature is especially important in:

• Injected nitro cars
• Forced induction cars
• Long staging situations
• Hot weather racing
• Methanol-burning combinations

Coolant Temperature Analysis

Coolant temperature data helps determine:

• Cooling system efficiency
• Fan and pump effectiveness
• Cylinder head heat trends
• Warm-up consistency

Analyzing coolant temp throughout a run helps teams maintain optimal engine temperature for maximum repeatability.

How Fluid Temperature Data Improves Tuning

The real value of fluid temp thermocouple sensors comes from trend analysis.

A tuner can compare:

• Round-to-round temperature consistency
• Temperature rise rates
• Cool-down times
• Environmental effects
• Changes after setup adjustments

This helps identify:

• Mechanical inefficiencies
• Excessive friction
• Overheating patterns
• Cooling system limitations
• Converter problems
• Lubrication issues

Without data logging, these trends remain invisible.

Preventing Expensive Failures

Many racing failures begin with heat.

A fluid temp thermocouple sensor can provide early warning signs before major damage occurs, including:

• Bearing failures
• Burned transmission clutches
• Oil breakdown
• Converter damage
• Differential overheating
• Hydraulic system failure

Catching temperature spikes early can save thousands of dollars in repairs and prevent lost race weekends.

Sensor Placement Matters

Correct sensor placement is critical for obtaining usable data.

Common mounting locations include:

• Oil pans
• Transmission pans
• Pressure-side fluid passages
• Return lines
• Fuel rails
• Coolant crossover passages
• Dry sump oil tanks

Placement determines how quickly and accurately the sensor captures temperature changes.

Why Every Serious Data Logging System Needs Fluid Temp Sensors

Modern racing is built on precision and repeatability. Fluid temperatures affect nearly every major mechanical system on the vehicle.

Without accurate fluid temperature data, tuners are making decisions without seeing the full picture.

A fluid temp thermocouple sensor helps racers:

• Protect expensive components
• Improve consistency
• Optimize tuning decisions
• Detect hidden problems
• Increase reliability
• Analyze system efficiency
• Maximize performance

In competitive racing, temperature data is no longer optional — it is essential.

Final Thoughts

A fluid temp thermocouple sensor is one of the most valuable sensors you can add to a race car data logging system. It gives teams the ability to monitor critical fluids in real time, identify performance trends, and prevent costly failures before they happen.

From oil and transmission fluid to fuel and coolant systems, temperature data provides insights that gauges alone simply cannot deliver.

The more accurately you can monitor heat, the more consistently and safely you can push a race vehicle to its limit.
