Zero Crossing (VR) vs Hall Effect Shaft Sensors: What They Do, How They Differ, and Why They Matter in Data Logging
You have two sensors that look similar – 3/8” fine thread, but one has a 3-pin male connector, while the other has a 3 pin female connector. Why?
The quick answer is to differentiate between two different types of sensors – Zero Crossing (VR) vs. Hall Effect.
Understanding the difference between them — and knowing which one is right for your application — can dramatically improve data quality, sensor reliability, and tuning accuracy. The biggest difference between the two sensor types is how they generate and transmit their signal.
What Is a Zero Crossing (VR) Sensor?
A Zero-Crossing or ZX sensor, which is also referred to as a VR or Variable Reluctance sensor, generates its own AC voltage signal as a magnet or a gear tooth passes the sensor tip. The resulting sine wave output alternates between a positive and negative value. As the RPM of the trigger wheel increases, the frequency of the sine wave increases, providing very accurate measurement of rotational speed.

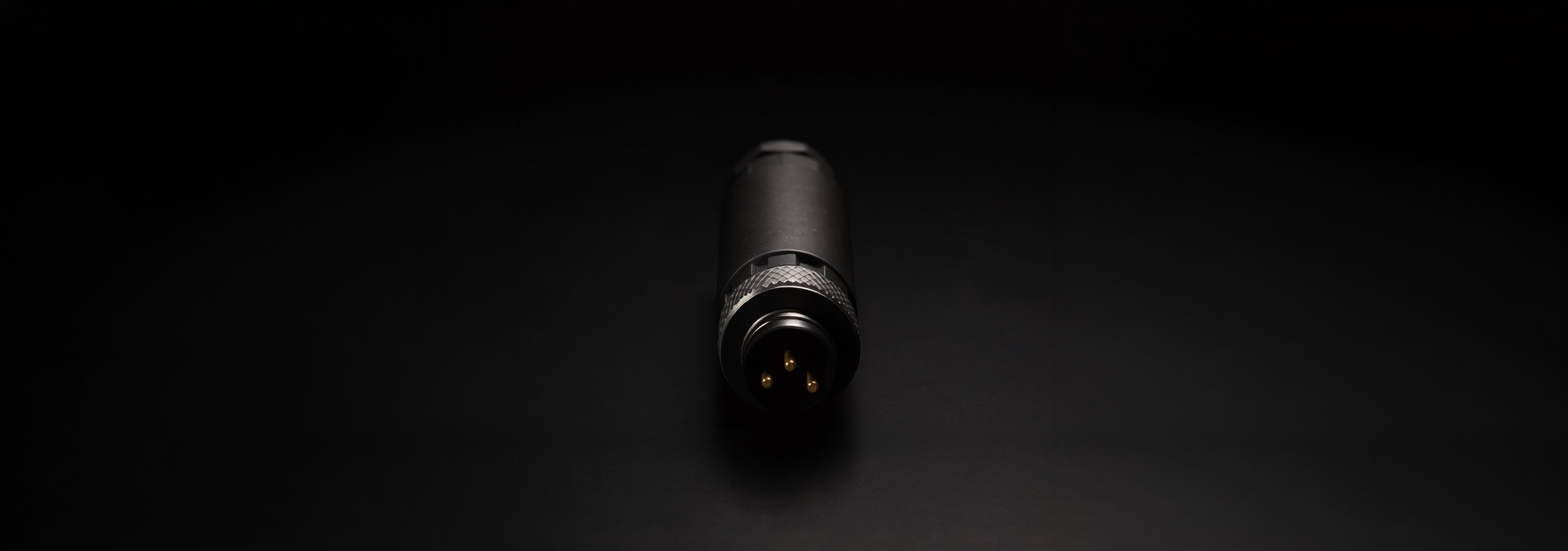

A Zero-Crossing sensor can be easily identified by the Molex female 3-position receptacle which features three male pins.
The typical wiring pinout is:
- Shield
- Signal
- Ground
As indicated by its name, a Zero Crossing sensor can provide very precise indication when the value crosses zero, since the sine wave output alternates between positive and negative values. That signal is converted into:
- Clutch RPM
- Top Dead Center (TDC) RPM
- Wheel Speed RPM
- Driveshaft RPM
How It Works
As the trigger wheel tooth or magnet passes the sensor:
- Magnetic field changes occur
- Voltage is generated
- Signal frequency increases with RPM
The faster the trigger wheel spins, the stronger the signal becomes.
Advantages of Zero Crossing Sensors
Simple Design
Zero Crossing or VR sensors are:
- Simple
- Easy to wire
They’ve been used in motorsports for decades.
No External Power Needed
A VR sensor creates its own signal and does not require:
- 5V reference
- 8V supply
- 12V power
This reduces wiring complexity. It also makes it an excellent choice for Clutch RPM, since the cable doesn’t carry 12 volt power into the bellhousing, where a damaged sensor or cable might cause the circuit to short and possibly blow the fuse for the data acquisition system.
Excellent High-RPM Capability
At higher shaft speeds, VR sensors produce strong signals that are highly accurate.
Disadvantages of Zero Crossing Sensors
Weak Signal at Low RPM
One of the biggest drawbacks is low-speed signal quality.
During:
- Launch
- Burnout
- Slow shaft movement
…the sensor may produce a weak signal that is difficult for the logger to read cleanly.
This can create:
- Signal dropout
- Noise
- False triggering
- Inconsistent RPM readings
Signal Noise Sensitivity
Because the sensor generates an analog AC signal, it can be affected by:
- Ignition noise
- Grounding issues
- Electrical interference
- Poor shielding
Improper wiring can corrupt the signal.
Air Gap Sensitivity
VR sensors are very sensitive to sensor gap.
Mounting the sensor too far from the magnet may result in:
- Signal dropout
- Delayed or inconsistent RPM readings
Mounting the sensor too close to the magnet may result in:
- False triggering or “high-spiking”
- Inconsistent RPM readings
Since the signal gets stronger with RPM, having the proper air gap between the sensor and trigger wheel is critical when using these sensors.
Hall Effect Sensors
A Hall Effect sensor can be easily identified by the Molex male 3-position plug which features three female sockets. Unlike a Zero Crossing sensor, it requires external power.
The typical wiring pinout is:
- Power
- Signal
- Ground
How It Works
A Hall Effect sensor detects changes in the magnetic field and creates a digital on/off square wave signal. As the magnet in the driveshaft collar passes the sensor:
- Magnetic field changes occur
- The sensor detects the strength of the magnet’s presence and generates a signal
- Signal frequency increases with RPM
The faster the driveshaft spins, the stronger the signal becomes since the magnetic field increases with RPM.
This provides a much cleaner signal to the data logger.
Advantages of Hall Effect Sensors
Better Low-Speed Accuracy
One of the biggest advantages is excellent low-speed performance.
The sensor produces a clean signal even when the shaft is moving very slowly.
This improves:
- Launch/60’ analysis
- Low-speed diagnostics
- Critical early driveshaft & wheel speed information
Trigger by Either Magnets or Steel (Ferrous) Material
The traditional 5/16” diameter Hall Effect sensor is triggered by a magnet passing by the tip of the sensor. The larger 3/8” diameter sensor can be triggered by steel passing by the tip of the sensor. Both applications use the same principle of detecting a magnet. The 3/8” sensor simply has the magnet built into the sensor, as opposed to having it embedded in a collar or trigger wheel. This allows for the monitoring of:
- Rear end (ring gear) RPM
- Wheel Speed
- Rotor RPM
Cleaner Signal
Hall Effect sensors are much less susceptible to:
- Electrical noise
- EMI interference
- Signal distortion
- Contact bounce since there are no moving parts
This creates:
- More stable RPM readings across a broader range of RPMs
- Higher resolution
- Cleaner graphs
- Better data consistency
Easier ECU and Logger Compatibility
Most modern ECUs and standalone data loggers prefer digital square-wave inputs because they are easier to process accurately.
Disadvantages of Hall Effect Sensors
Requires External Power
Unlike VR sensors, Hall Effect sensors require:
- 5V
- 8V
- or 12V power supply
Improper voltage can damage the sensor or create unreliable readings.
Slightly More Complex Wiring
Because they require:
- Power
- Signal
- Ground
…installation is slightly more involved.
Sensor Compatibility Matters
Not all Hall Effect sensors work with all trigger wheels or tooth styles. Also, most Hall Effect sensors are polarity-sensitive, so magnet alignment matters.
Which Sensor Is Better for My Application?
For modern drag racing data systems, Hall Effect sensors are generally preferred for Driveshaft and Wheel Speed monitoring, while the Zero Crossing sensors are preferred for Clutch and TDC RPM. Why?
Hall Effect sensors provide:
- Cleaner signals
- Better low-speed accuracy
- Higher resolution
- More reliable launch data
- Better compatibility with modern electronics
Zero Crossing (VR) sensors provide:
- Signal without requiring power
- Precise indication of magnet or trigger passage
- More reliable timing data
- Better durability since only signal and ground are required
Best Practices for Hall Effect and Zero Crossing Sensor Installation
To get reliable data:
Maintain Proper Air Gap
Always follow sensor manufacturer recommendations.
Improper gap can cause:
- Signal dropout
- False RPM spikes
- Missed pulses
Use the Correct Trigger
When using a magnet to trigger the sensors, verify the polarity of the magnets. Most Hall Effect and Zero Crossing sensors are triggered by the south pole of a rare-earth magnet.
Improper magnet polarity can cause:
- Complete loss of signal
- Signal dropout
- Jagged or “sawtooth” RPM readings
Failure to follow these recommendations may result in inconsistent reading or a complete loss of signal.
Use Shielded Wiring
Keep sensor wiring away from:
- Ignition coils
- Plug wires
- Alternator wiring
- High-current circuits
Secure the Wiring
Monitoring TDC or Clutch RPM can expose sensors to harsh environments:
- Vibration
- Heat
- Debris (clutch, blower belt, etc.)
- Chassis flex
Poor wiring support causes intermittent failures.
Verify Pulse Count
Ensure your logger is configured correctly for:
- Pulses per revolution
- Magnet count
- Tooth count
Incorrect settings create inaccurate speed calculations.
Troubleshooting Tips
Troubleshooting a Zero-Crossing sensor is different than a Hall Effect sensor. Below are a few tips to help troubleshoot each type of circuit if you aren’t getting any readings or the readings are inconsistent:
Zero Crossing sensors:
- Measure across the signal and ground (middle and bottom) pins – should be 100 ohms or more
- Confirm magnet polarity
- Check air gap: .060”-.100”
- Verify channel settings stored in data logger
Hall Effect sensors:
- Measure across the power and ground (top and bottom) pins on harness – should be 12 volts going to the sensor
- Confirm magnet polarity
- Check air gap: .060”-.100”
- Verify channel settings stored in data logger
In both cases, waving a magnet past the sensors should generate a signal. However, since most zero-crossing sensors will not register below roughly 500 RPM it is recommended to use a spin fixture of some design.
Final Thoughts
Before you cut off the end of that Clutch RPM cable because it doesn’t match the sensor, remember there is a reason for different connectors. The Hall Effect sensor has power on the top pin (pointed end) of the Molex connector, while the Zero Crossing sensor connects to the shield on the top pin. Putting power to the shield on the system can potentially have disastrous results, while connecting a Hall Effect sensor to the shield instead of power will prevent the sensor from working.
Each sensor has its own unique characteristic that makes it more suitable for its intended application. Most data acquisition systems make diligent use of both sensor types to provide the most accurate signals possible for each digital input.
