Why Modern Racers Depend on Data Acquisition Systems

In today’s motorsports world, data wins races. Whether you compete in Sportsman drag racing, Pro Mod, Top Fuel, pulling, or high-horsepower outlaw classes, the ability to capture and analyze vehicle performance is one of the biggest competitive advantages available.

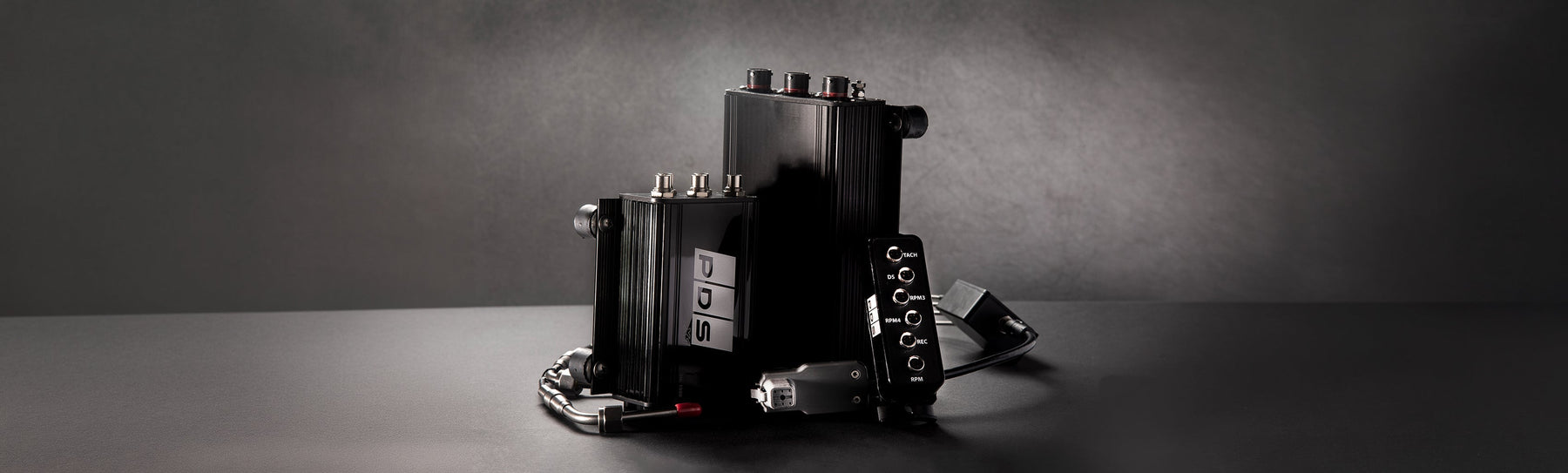

That is where the Performance Data Systems (PDS) X1 and X2 Data Loggers come in. Designed specifically for harsh racing environments, these systems allow racers and tuners to monitor critical vehicle functions in real time, diagnose problems quickly, and make smarter tuning decisions between rounds.

The PDS X1 and X2 are built for racers who want reliable, expandable, professional-grade data acquisition systems capable of surviving extreme vibration, ignition noise, and high-performance racing conditions.

What Is a Data Logger?

A data logger records information from sensors installed throughout the vehicle. During a run, the logger captures performance data such as:

• Engine RPM
• Driveshaft RPM
• Ignition timing
• Temperatures
• Pressure readings
• Shock travel
• Air/fuel ratio
• G-force and acceleration
• Clutch data
• Wheel speed
• CAN bus ECU information

After the pass, the recorded information is analyzed using tuning software so the racer can see exactly what happened during the run.

Instead of guessing why a car spun the tires, shook, nosed over, detonated, or slowed down, the data tells the full story.

The PDS X1 Data Logger

Built for Sportsman and Professional-Level Racing

The PDS X1 Data Logger is designed for racers who need a powerful and expandable logging platform without unnecessary complexity.

The X1 is NHRA-approved for use in nearly all drag racing categories and is commonly used in:

• Bracket racing
• Super Comp
• Super Gas
• Top Sportsman
• Top Dragster
• Pro Modified
• Drag Radial
• Diesel racing
• Pulling applications
• Motorcycle racing

The base X1 system monitors critical channels including:

• Engine RPM
• Driveshaft RPM
• Acceleration G-force
• Lateral G-force
• Battery voltage

The system also supports additional digital RPM and event inputs for converter RPM, clutch RPM, front wheel speed, ignition timing monitoring, and more.

Why Racers Choose the X1

1. Easy Expansion with XBus Technology

One of the biggest advantages of the X1 is the PDS XBus system. XBus is PDS’ proprietary CAN-based expansion network that allows racers to add up to 72 channels of sensors and modules.

This means you can start with a simple setup and later expand into:

• Shock travel sensors
• Pressure sensors
• Thermocouples
• Air/fuel sensors
• Ride height sensors
• Clutch and wheel speed sensors
• Fuel system monitoring
• Transmission monitoring
• Individual cylinder timing

The system grows with your race program.

2. Cleaner Installation

The X1 uses RPM modules to simplify wiring. Instead of routing multiple sensor wires throughout the car, the RPM module collects signals and transfers them through a single cable to the logger.

Benefits include:

• Reduced wiring clutter
• Easier troubleshooting
• Cleaner race car installation
• Improved reliability
• Faster maintenance

In high-vibration racing environments, fewer connections usually means fewer failures.

3. CAN Bus Compatibility

Modern race cars increasingly rely on CAN communication. The X1 connects directly to CAN-based ECUs and sensors without additional hardware.

This allows tuners to combine ECU information with chassis and sensor data in one unified system.

You can monitor:

• Fuel flow
• Injector duty cycle
• Boost pressure
• Timing retard
• Oil pressure
• Lambda values
• Engine diagnostics

All in one data file.

4. Real-Time Data Viewing

The X1 can display live information on CAN-enabled dashboards and displays.

This allows the driver or crew chief to monitor critical values instantly, helping identify issues before catastrophic failures occur.

The PDS X2 Data Logger

Designed for Extreme Racing Environments

The PDS X2 Data Logger is the flagship PDS logger built for the harshest and most demanding motorsports applications.

The X2 is specifically engineered for:

• Top Fuel Dragsters
• Nitro Funny Cars
• Alcohol Funny Cars
• Alcohol Dragsters
• Multi-engine pulling tractors
• High-cylinder-pressure applications

Nitro racing environments generate enormous ignition interference, vibration, and electrical noise. The X2 is designed to survive and accurately record data under those extreme conditions.

What Makes the X2 Different?

1. High-Speed Data Recording

The X2 features:

• 15 digital RPM/event channels
• 8 high-speed 1000 Hz channels
• Dual-axis G-meter
• Ignition timing and magneto phase monitoring
• Dual CAN bus capability

This allows teams to capture extremely detailed information during short, violent race runs where every millisecond matters.

2. Magneto and Ignition Monitoring

Nitro and high-horsepower race engines produce enormous ignition energy. The X2 is specifically designed to operate with:

• High-amperage magnetos
• Solid-core ignition wires
• Extreme cylinder pressures

The logger can monitor ignition timing and mag phase for two magnetos simultaneously. It can also monitor individual cylinder timing with the addition of a cam sync input.

This is critical in Top Fuel and Funny Car applications where ignition stability directly affects power and engine survival.

3. Advanced Sensor Capacity

Like the X1, the X2 also supports up to 72 XBus channels.

This allows teams to monitor virtually every aspect of vehicle performance, including:

• Clutch management
• Tire shake
• Fuel system pressure
• Exhaust temperature
• Engine harmonics
• Chassis flex
• Driveshaft acceleration

For professional teams, this information is essential for performance optimization.

Why Data Logging Matters

Modern racers no longer tune by feel alone. Data logging provides measurable information that improves:

Performance

Data reveals where the car gains or loses time. Teams can improve:

• Launch consistency
• Clutch setup
• Fuel delivery
• Ignition timing
• Tire management
• Suspension tuning

Even small improvements can dramatically reduce ET and improve consistency.

Reliability

A data logger can identify problems before they become catastrophic failures.

Examples include:

• Falling oil pressure
• Lean air/fuel conditions
• Excessive clutch heat
• Improper ignition or cylinder misfire
• Excessive chassis or suspension movement
• Overheating

Preventing a single failure can often pay for the entire system.

Consistency

Winning races requires repeatable performance. Data helps teams identify why one run differed from another.

Consistency is especially important in:

• Bracket racing
• Index racing
• No-time racing
• Heads-up competition

Better Tuning Decisions

Without data, tuning becomes guesswork.

With a logger, teams can make decisions based on facts instead of assumptions.

This is why professional motorsports teams rely heavily on telemetry and data acquisition systems. Many racers across motorsports communities emphasize that modern tuning depends heavily on CAN bus data, sensor integration, and post-run analysis software.

X1 vs X2 — Which One Is Right for You?

Without data, tuning becomes guesswork.

With a logger, teams can make decisions based on facts instead of assumptions.

This is why professional motorsports teams rely heavily on telemetry and data acquisition systems. Many racers across motorsports communities emphasize that modern tuning depends heavily on CAN bus data, sensor integration, and post-run analysis software.

Final Thoughts

The PDS X1 and X2 Data Loggers are far more than simple recording devices. They are complete motorsports data acquisition systems designed to help racers improve performance, consistency, and reliability.

The X1 is an excellent choice for racers who want a powerful, expandable logger capable of handling nearly any Sportsman or professional drag racing application.

The X2 is built for elite-level motorsports where extreme conditions demand maximum data resolution, ignition monitoring, and rugged durability.

In modern racing, data is one of the most valuable tuning tools available. The teams that understand their data usually outperform the teams that rely only on instinct.

Whether you race brackets, radial, pro mod, nitro cars or pulling tractors, a properly configured PDS data logging system can provide the information needed to make faster, safer, and more consistent passes down the track.
