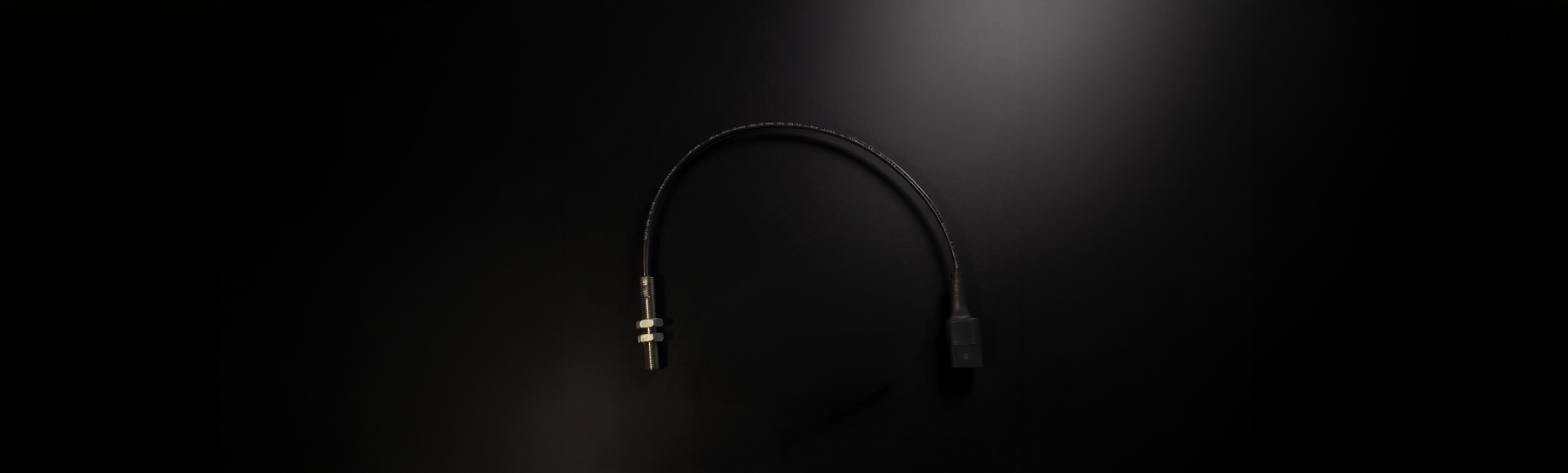

2-Pin vs 3-Pin Driveshaft Sensors: What They Do, How They Differ, and Why They Matter in Data Logging.

In drag racing, the quickest elapsed time doesn’t necessarily win — consistency does.
That’s why serious racers rely on driveshaft speed data to understand exactly what the car is doing from the hit all the way through the finish line.

A driveshaft sensor is one of the most important sensors in a data logging system because it shows how effectively the tire is applying power to the track. Without it, tuning decisions are often based on feel, assumptions, or incomplete information.

But not all driveshaft sensors work the same way.

The two most common types are:

• 2-pin driveshaft sensors
• 3-pin driveshaft sensors

Understanding the difference between them — and knowing which one is right for your application — can dramatically improve data quality, sensor reliability, and tuning accuracy.

What Is a Driveshaft Sensor?

A driveshaft sensor measures rotational speed of the driveshaft by reading a trigger wheel, bolts, magnets, or gear teeth attached to the shaft.

As the driveshaft rotates, the sensor sends a signal to the data logger or ECU. That signal is converted into:

• Driveshaft RPM
• Tire speed
• Vehicle acceleration trends
• Wheel slip analysis
• Traction behavior
• Converter/clutch efficiency
• Gear ratio validation

This data becomes one of the primary tools for analyzing chassis performance and power application.

Why Driveshaft Speed Matters

The driveshaft tells the truth about traction.

Engine RPM can rise because:

• The engine made more power
• The converter flashed harder
• The tire slipped
• The clutch slipped

But driveshaft speed shows what the car actually did.

A proper driveshaft graph can help identify:

• Tire shake
• Spin at the hit
• Downtrack tire slip
• Chassis instability
• Converter issues
• Clutch management problems
• Power delivery problems
• Suspension timing issues

Without driveshaft data, many tuning changes become educated guesses instead of measurable adjustments.

What a Driveshaft Curve Should Look Like

A healthy driveshaft graph typically shows:

• Smooth acceleration
• Controlled initial rise
• Stable ramp rate
• Predictable progression down track

When traction problems occur, the graph often shows:

• Sudden spikes
• Sharp acceleration jumps
• Oscillation
• Flat spots
• Inconsistent ramp rates

This is why driveshaft speed is considered one of the most important channels in drag racing data logging.

The Difference Between 2-Pin and 3-Pin Driveshaft Sensors

The biggest difference between the two sensor types is how they generate and transmit their signal.

2-Pin Driveshaft Sensors

A 2-pin sensor is usually a:

• Contact Closure (Reed Switch) sensor

It generates a ground-trigger pulse as a magnet passes the sensor tip.

How It Works

As the magnet in the driveshaft collar passes the sensor:

• Magnetic field changes occur
• The Reed Switch contacts come together to generate a ground-triggered pulse
• Signal frequency increases with RPM

The faster the driveshaft spins, the stronger the signal becomes since the magnetic field increases with RPM.

Advantages of 2-Pin Sensors

Simple Design

2-pin sensors are:

• Simple
• Inexpensive
• Easy to wire

They’ve been used in motorsports for decades.

No External Power Needed

A Reed Switch sensor creates its own signal and does not require:

• 5V reference
• 8V supply
• 12V power

This reduces wiring complexity.

Connection Type

2-pin sensors feature a male Molex plug with two female sockets which connect the sensor to the RPM input cable going to the data logger.

Disadvantages of 2-Pin Sensors

Signal Dropouts at High RPM

One of the biggest drawbacks is high-speed signal quality.

During:

• Burnout
• Finish Line
• Fast shaft movement

…the Reed Switch sensor can reach a certain RPM where it may experience “contact bounce”, producing an inconsistent signal that is difficult for the logger to read cleanly.

This can create:

• Signal dropout
• Inconsistent RPM readings

Signal Noise Sensitivity

Because the sensor sends a ground-trigger signal, it can be affected by:

• Ignition noise
• Grounding issues
• Electrical interference
• Poor shielding

Improper wiring can corrupt the signal.

Air Gap Sensitivity

Reed Switch sensors are very sensitive to sensor air gap.

Too much distance between the sensor and driveshaft collar can reduce signal quality significantly.

Durability

Reed Switch sensors rely on mechanical movement of the contacts within the sensor, and are therefore susceptible to wear over time, as well as significant shock or vibration.

3-Pin Driveshaft Sensors

A 3-pin sensor is typically a:

• Hall Effect sensor
• Digital speed sensor

Unlike a 2-pin sensor, it requires external power.

Typical wiring includes:

• Power
• Signal
• Ground

How It Works

A Hall Effect sensor detects changes in the magnetic field and creates a digital on/off signal. As the magnet in the driveshaft collar passes the sensor:

• Magnetic field changes occur
• The sensor detects the strength of the magnet’s presence and generates a signal
• Signal frequency increases with RPM

The faster the driveshaft spins, the stronger the signal becomes since the magnetic field increases with RPM.

This provides a much cleaner signal to the data logger.

Advantages of 3-Pin Sensors

Better Low-Speed Accuracy

One of the biggest advantages is excellent low-speed performance.

The sensor produces a clean signal even when the shaft is moving very slowly.

This improves:

• Launch/60’ analysis
• Low-speed diagnostics
• Critical early driveshaft & wheel speed information

Trigger by Either Magnets or Steel (Ferrous) Material

The traditional 5/16” diameter Hall Effect sensor is triggered by a magnet passing by the tip of the sensor. The larger 3/8” diameter sensor can be triggered by steel passing by the tip of the sensor. Both applications use the same principle of detecting a magnet. The 3/8” sensor simply has the magnet built into the sensor, as opposed to having it embedded in a collar or trigger wheel. This allows for the monitoring of:

• Rear end (ring gear) RPM
• Wheel Speed
• Rotor RPM

Cleaner Signal

Hall Effect sensors are much less susceptible to:

• Electrical noise
• EMI interference
• Signal distortion
• Contact bounce since there are no moving parts

This creates:

• More stable RPM readings across a broader range of RPMs
• Higher resolution
• Cleaner graphs
• Better data consistency

Easier ECU and Logger Compatibility

Most modern ECUs and standalone data loggers prefer digital square-wave inputs because they are easier to process accurately.

Connection Type

3-pin sensors feature a male Molex plug with three female sockets which connect the sensor to the RPM input cable going to the data logger.

Disadvantages of 3-Pin Sensors

Requires External Power

Unlike Reed Switch sensors, Hall Effect sensors require:

• 5V
• 8V
• or 12V power supply

Improper voltage can damage the sensor or create unreliable readings.

Slightly More Complex Wiring

Because they require:

• Power
• Signal
• Ground

…installation is slightly more involved.

Sensor Compatibility Matters

Not all Hall sensors work with all trigger wheels or tooth styles. Also, most Hall Effect sensors are polarity-sensitive, so magnet alignment matters, unlike a Reed Switch.

Proper configuration matters.

Which Sensor Is Better for Drag Racing?

For modern drag racing data systems, 3-pin Hall Effect sensors are generally preferred.

Why?

Because they provide:

• Cleaner signals
• Better low-speed accuracy
• Higher resolution
• More reliable launch data
• Better compatibility with modern electronics

This is especially important in:

• High-horsepower cars
• Radial tire applications
• No prep racing
• Fast bracket cars
• Clutch cars
• Traction-limited conditions

When a 2-Pin Sensor Still Makes Sense

2-pin Reed Switch sensors can still work very well in:

• Simpler systems
• Budget builds
• Older data loggers
• Applications with excellent shielding and wiring

Many racers still successfully run them today.

Why Driveshaft Data Is Critical in Data Logging

A driveshaft sensor transforms tuning from guessing into measurable analysis.

Without driveshaft data:

• You cannot accurately quantify tire slip
• You cannot see converter behavior clearly
• You cannot properly evaluate traction
• You miss what the chassis is actually doing

Driveshaft speed is often the first channel experienced tuners look at after every pass.

Because the driveshaft reveals:

• How efficiently power reached the tire
• Whether the car stayed hooked
• How aggressive the tune-up was
• What changed between runs

Common Tuning Decisions Made Using Driveshaft Data

Teams use driveshaft data to adjust:

• Launch RPM
• Timing curves
• Boost ramps
• Clutch application
• Converter setup
• Shock settings
• Suspension preload
• Wheelie bar height
• Tire pressure
• Traction control
• Power management

Without accurate driveshaft data, many of these changes become trial-and-error.

Best Practices for Driveshaft Sensor Installation

To get reliable data:

Maintain Proper Air Gap

Always follow sensor manufacturer recommendations.

Improper gap can cause:

• Signal dropout
• False RPM spikes
• Missed pulses

Use the Correct Trigger

When using a driveshaft collar, verify the polarity of the magnets. Most Hall Effect sensors are triggered by the south pole of a rare-earth magnet.

Improper magnet polarity can cause:

• Complete loss of signal
• Signal dropout
• Jagged or “sawtooth” driveshaft RPM readings

Similarly, if triggering the Hall Effect sensor with a series of steel bolts, such as Wheel Speed RPM, be sure to use traditional 6- or 12-point steel head bolts and not socket cap or “allen head” bolts. The gap in the center of the bolt head can cause the sensor to see both the leading and trailing edge of the bolt head and trick it into sending two pulses for each bolt it detects.

When using steel bolts or other ferrous material to trigger the sensor, be sure to check:

• Correct material – steel or other magnetic ferrous material
• No socket cap bolts or any trigger with a relief in it
• Ensure all bolts are set to the same distance from the sensor tip
• Proper air gap - .060”-.090” air gap recommended
• Allow sufficient space between triggers for sensor to determine the presence or absence of steel.

Failure to follow these recommendations may result in inconsistent reading or a complete loss of signal.

Use Shielded Wiring

Keep sensor wiring away from:

• Ignition coils
• Plug wires
• Alternator wiring
• High-current circuits

Secure the Wiring

Driveshaft environments are harsh:

• Vibration
• Heat
• Debris
• Chassis flex

Poor wiring support causes intermittent failures.

Verify Pulse Count

Ensure your logger is configured correctly for:

• Pulses per revolution
• Magnet count
• Tooth count

Incorrect settings create inaccurate speed calculations.

Final Thoughts

A driveshaft sensor is one of the most important sensors in any serious drag racing data logging system.

It provides direct insight into:

• Traction
• Tire performance
• Chassis behavior
• Power application

While both 2-pin and 3-pin sensors can work effectively, modern racing systems increasingly favor 3-pin Hall Effect sensors because of their:

• Cleaner signal quality
• Superior low-speed accuracy
• Higher resolution
• Improved reliability across a broad range of RPMs
• Better compatibility with digital electronics

At the end of the day, the goal of data logging is simple:

Remove guesswork.

And few sensors remove more guesswork than a properly installed driveshaft speed sensor.
